Domestic Monobloc

Air to Water DC Inverter Heat Pump with EVI function

  • 3 in 1 Heating, Cooling and DHW heating solution

    Our heat pump provides not only heating/cooling,
    but also domestic hot water heating. An external
    DHW 3-way-valve is needed for DHW function.

  • -30°C Applicable

    Integrated with EVI technology on compressor, our
    heat pump able to output more stably and efficienly
    even when ambient temperature drops to -30°C.

  • Stable DC Inverter control system

    Bulit inside EVI+DC inverter compressor, dc fan motor,
    and electronic expansion valve, our heat pump has
    a dc inverter system.

  • Quiet Operation

    High-quality components, noise-optimized design,
    and well insulation provides low noise operation,
    along with peacful and comfortable experience.

  • Electric Heating Cable on Bottom Plate

    This is to keep condensation water draining easily
    out the bottom plate during defrosting, improving
    efficiency of defrosting in cold days.

  • Designed for Energy Efficiency A+++

    Our heat pump changes working frequencies
    according to actual real heating/cooling status, it
    achieves energy level A+++ as per ErP directives.

  • Eco-Friendly Refrigerant R32

    R32 contributes greatly to environmental protection
    since it has lower GWP. Our heat pump keeps your
    home warm in an eco-friendly way.

  • Max. 60°C Water Temperature

    For domestic hot water, our heat pump outputs
    maximum 60°C hot water.

  • Intelligent Defrost Program

    Our heat pump has smart program in controller,
    and hardware to make judgement and start the
    defrost process efficiently.

  • RS485 and WIFI remote control (Optional)

    The heat pump can be accessed via smartphone
    and computer. The setting, the measured value,
    the failure code and time are in record.

System Connection Schema

ZyunNang dc evi inverter monobloc domestic air to water heat pump

OEM and ODM available.

  • (A) Monobloc heat pump

  • (B) DHW 3-Way Valve

  • (C) DHW Cylinder

  • (D) DHW, Domestic Hot Water

  • (E) Under Floor Heating

  • (F) Low Temperature Surface Radiator

  • (G) Fan Coil Unit

  • (H) Buffer Tank

  • (I) Wired Controller Panel

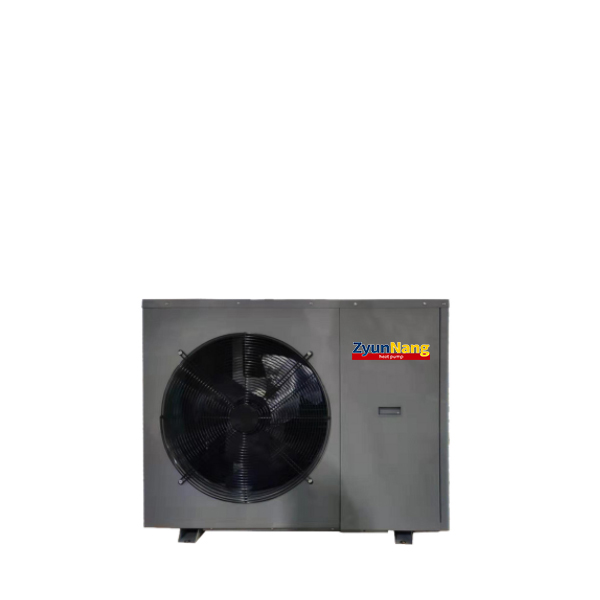

ZyunNang dc evi inverter monobloc domestic air to water heat pump

AM009G

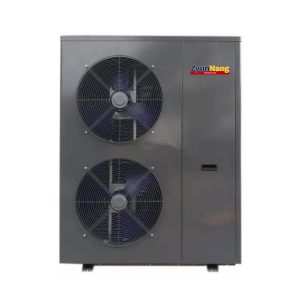

ZyunNang dc evi inverter monobloc domestic air to water heat pump

AM016G

ZyunNang dc evi inverter monobloc domestic air to water heat pump

AM024G

ZyunNang dc evi inverter monobloc domestic air to water heat pump

AM030G

Photo copyrights reserved.

Technical paramters

Model AM009G AM016G AM024G AM030G
Range of heating output kW 3.5-10 6.0-18 9.0-26 12-32
Heating (A7/W35) * Heating capacity kW 9 16 24 32
Input power kW 1.95 3.48 5.26 6.62
COP - 4.6 4.6 4.56 4.53
Heating (A7/W55) Heating capacity/COP kW 9.1/2.91 16/2.98 24/2.98 30/2.95
Heating (A-7/W35) Heating capacity/COP kW 7.2/3.16 12.8/3.25 18/3.24 24/3.21
Heating (A-15/W35) Heating capacity/COP kW 5.7/2.67 10.5/2.71 15/2.69 20/2.71
DHW (A20/W15-55) Heating capacity/COP kW 10.0/4.3 18.0/4.26 26.0/4.26 32.0/4.25
Cooling (A35/W7) Cooling capacity/EER kW 6.5/2.28 13/4.63 16.5/6.06 26/9.49
Power supply Voltage/Phase/Hz kW 220-240/1/50 380-415/3/50 380-415/3/50 380-415/3/50
Applicable ambient temp. °C -35 to +43
Refrigerant Type - R32 or R410a
Compressor Type - DC inverter type with EVI function
Unit dimension mm 1085x475x805 1030x445x1340 1085x475x1385 1138x455x1575
Weight Net/Gross kg 75/90 120/140 150/165 165/180

* Heating, at condition of ambient temperature 7°C, water heated from 30°C to 35°C.
** Heating with compressor of FULL SPEED, at condition of ambient temperature 7°C, water heated from 30°C to 35°C.
*** Cooling, at condition of ambient temperature 35°C, water heated from 12°C to 7°C.
****Due to product improvement, subject to be changed without prior notice, please refer to the nameplate of the product as standard.
